The Tao of Silicon: Huawei’s Architectural Gambit to Outrun Moore’s Law and US Sanctions

Huawei's HiSilicon has released an updated technical roadmap, the 'Tau Law' V2, detailing how 'Logic Folding' and 3D architectural innovations will allow their Kirin and Ascend chips to achieve massive performance gains despite international sanctions on advanced chipmaking equipment.

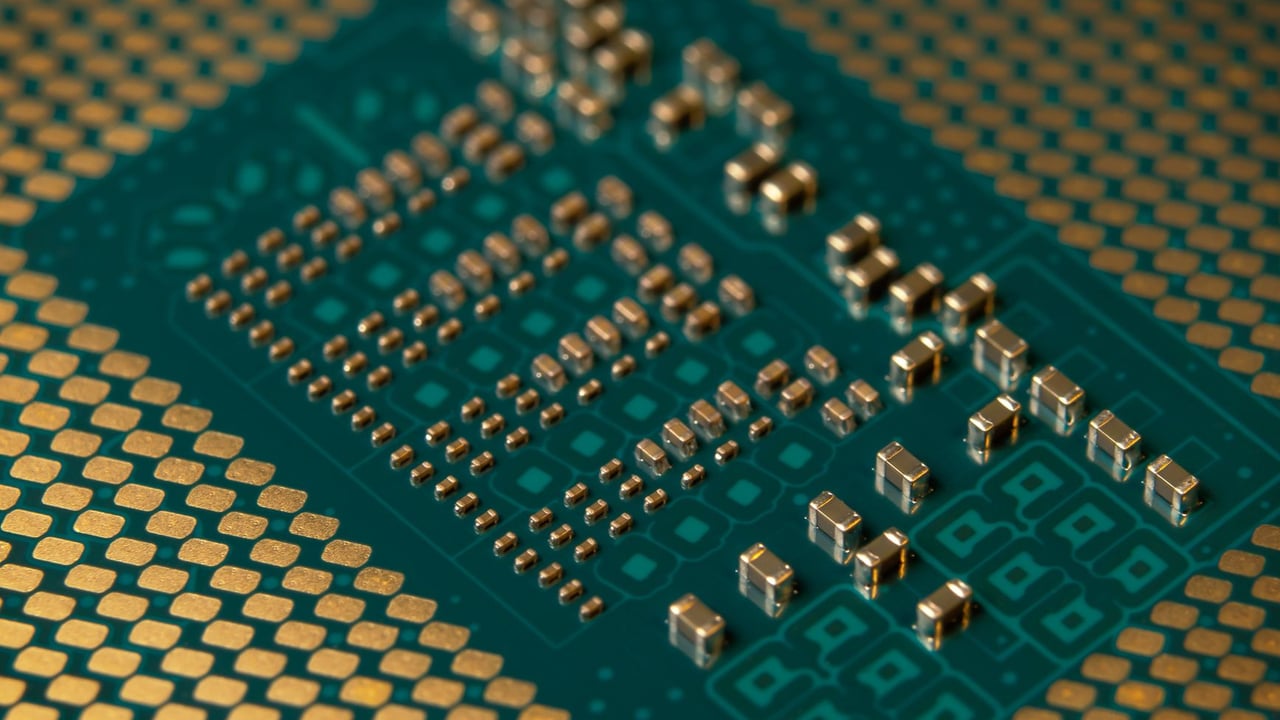

Detailed close-up of a microprocessor circuit board showcasing intricate circuitry and components.

Key Takeaways

  • 1Introduction of 'Logic Folding' as a primary engineering path to bypass the need for advanced EUV lithography.
  • 2Roadmap for Kirin mobile processors to reach 4GHz clock speeds by 2029 using 3D cell-level optimization.
  • 3Strategic shift from geometric scaling (making chips smaller) to temporal scaling (making signals move faster).
  • 4Projection of a 100x increase in AI hardware integration by 2035 through unified buses and optical interconnects.
  • 5Empirical data shows a 41% power reduction in Logic Folding prototypes compared to traditional planar architectures at the same process node.

Editor's
Desk

Strategic Analysis

This move represents Huawei’s declaration of technological sovereignty. By formalizing the 'Tau Law,' Huawei is signaling to the global market—and Washington—that it intends to remain competitive in high-end silicon by out-engineering the physical limits of its current manufacturing capabilities. The focus on 'Logic Folding' and 'Gear Ratios' suggests that Huawei is leaning heavily into advanced packaging and 3D integration as a substitute for 2nm or 3nm lithography. If successful, this architectural shift could neutralize the impact of export controls by proving that system-level integration and 'time-based' efficiency are more critical to the AI era than the raw transistor density that defined the smartphone era.

China Daily Brief Editorial
Strategic Insight
China Daily Brief

As the semiconductor industry hits the physical and economic walls of Moore’s Law, Huawei is attempting to rewrite the rulebook for silicon performance. He Tingbo, President of Huawei’s semiconductor arm, HiSilicon, has unveiled the second iteration of her “Tau Law” (τ), a theoretical framework that shifts the industry’s focus from the traditional shrinking of transistors to the optimization of time constants across chip architectures. This pivot is not merely a scientific exploration but a strategic necessity for a firm currently restricted from the world’s most advanced lithography tools.

The "V2" paper, published on ChinaXiv, moves from abstract theory to a concrete engineering blueprint for the post-Moore era. Central to this roadmap is the concept of "Logic Folding," an advanced 3D architectural approach designed to bypass the limitations of two-dimensional chip design. By optimizing the "Gear Ratio"—the proportion between hybrid bonding pitch and top-layer metal wiring—Huawei aims to achieve "cell-level continuous optimization." This effectively allows for performance gains that traditionally required more advanced, and currently inaccessible, manufacturing nodes.

Huawei’s internal roadmaps for its Kirin and Ascend processors, detailed in the update, reveal the scale of their ambition. The company expects its Kirin mobile CPUs to break the 4GHz clock speed barrier by 2029 through Logic Folding, while the Ascend AI series is projected to see a hundredfold increase in system-level integration by 2035. The roadmap indicates that while current AI chips like the Ascend 910C rely on mature Chiplet and 2.5D packaging, the transition to full 3D Logic Folding will begin around 2030.

Beyond individual chip speeds, the Tau Law addresses the systemic "memory wall" and the growing energy crisis in AI computing. He Tingbo argues that in massive AI clusters, over 80% of energy is wasted on data movement rather than computation. By implementing unified buses and near-package optical interconnects (Hi-ONE), Huawei is betting that the future of computing power will be defined not by who can etch the smallest transistors, but by who can most effectively shorten the distance data must travel between the chip, the server, and the rack.
