Chuangda Materials Anchors China’s Semiconductor Ambitions with New Advanced Packaging Base

Chuangda New Materials has committed 110 million RMB to build a semiconductor packaging material production line in Wuxi. The project targets the high-end materials market, aiming to produce over 2,000 tons of packaging materials annually to bolster China's domestic chip supply chain.

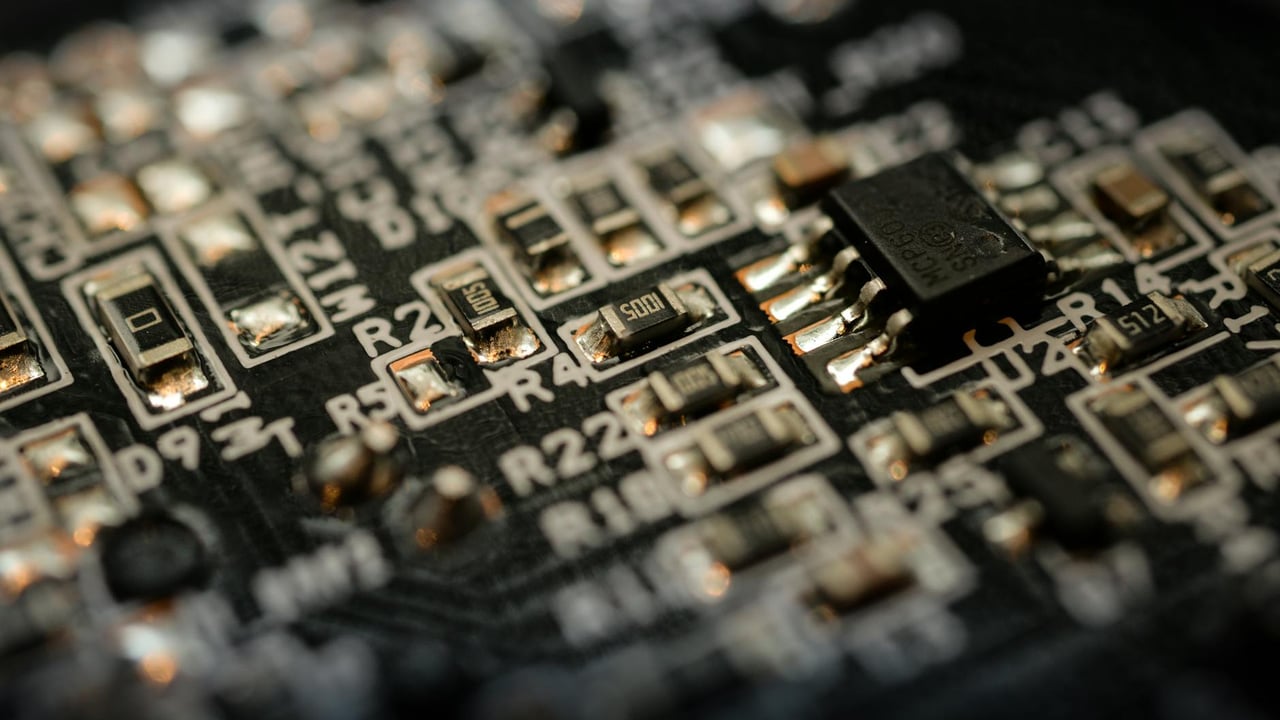

Detailed close-up of a microchip on an electronic circuit board with components and connections.

Key Takeaways

  • 1Total investment of 110 million RMB in the Wuxi National High-Tech Industrial Development Zone.
  • 2Annual production target of 2,128 tons of advanced packaging materials and 40,000 square meters of epoxy film.
  • 3Estimated construction and implementation timeline of 1.5 years.
  • 4Strategic focus on the 'back-end' of semiconductor manufacturing to enhance domestic self-reliance.

Editor's
Desk

Strategic Analysis

While much of the global focus remains on high-end lithography and wafer fabrication, the 'packaging and testing' (OSAT) sector has become China’s most effective theater for industrial pushback. Advanced packaging allows for significant performance gains through chiplet architectures and 3D stacking, effectively bypassing some of the limitations imposed by Western lithography sanctions. Chuangda’s investment in specialty epoxy films and packaging materials is a micro-level realization of this national strategy. By mastering the chemical precursors and specialized films required for advanced packaging, Chinese firms are attempting to build a 'fortress supply chain' that can maintain technological momentum even if access to leading-edge nodes remains restricted.

China Daily Brief Editorial
Strategic Insight
China Daily Brief

Chuangda New Materials is doubling down on China’s quest for semiconductor self-sufficiency with a strategic expansion in one of the country’s premier tech hubs. The company has announced plans to invest approximately 110 million RMB ($15.2 million) in a new production facility located within the Wuxi National High-Tech Industrial Development Zone. This move signals a concerted effort by domestic specialty material providers to move up the value chain as global supply chain pressures mount.

The project is designed to address a critical bottleneck in the chip-making process: advanced packaging materials. Upon completion, the facility is expected to produce 2,128 tons of advanced packaging materials and 40,000 square meters of epoxy film annually. These components are essential for the protection and interconnectivity of integrated circuits, particularly as modern electronics demand higher thermal stability and miniaturization.

Strategically situated in Wuxi, the new plant will benefit from an established ecosystem of semiconductor manufacturers and research institutes. The construction period is estimated at 18 months, placing Chuangda on a trajectory to significantly scale its output by 2028. This timeline reflects the urgency with which Chinese firms are building out domestic capacity to insulate themselves from geopolitical volatility and export restrictions.

As a company listed on the Beijing Stock Exchange, Chuangda represents the 'Little Giant' category of enterprises that Beijing is actively nurturing. These specialized firms are tasked with mastering 'chokepoint' technologies that were previously dominated by international suppliers from Japan and the West. By securing land and regulatory support in Wuxi, Chuangda is positioning itself as a vital link in the sovereign electronics supply chain.
